TECHNICAL SPECIFICATION OF
SERVO CONTROLLED VOLTAGE STABILIZER
|

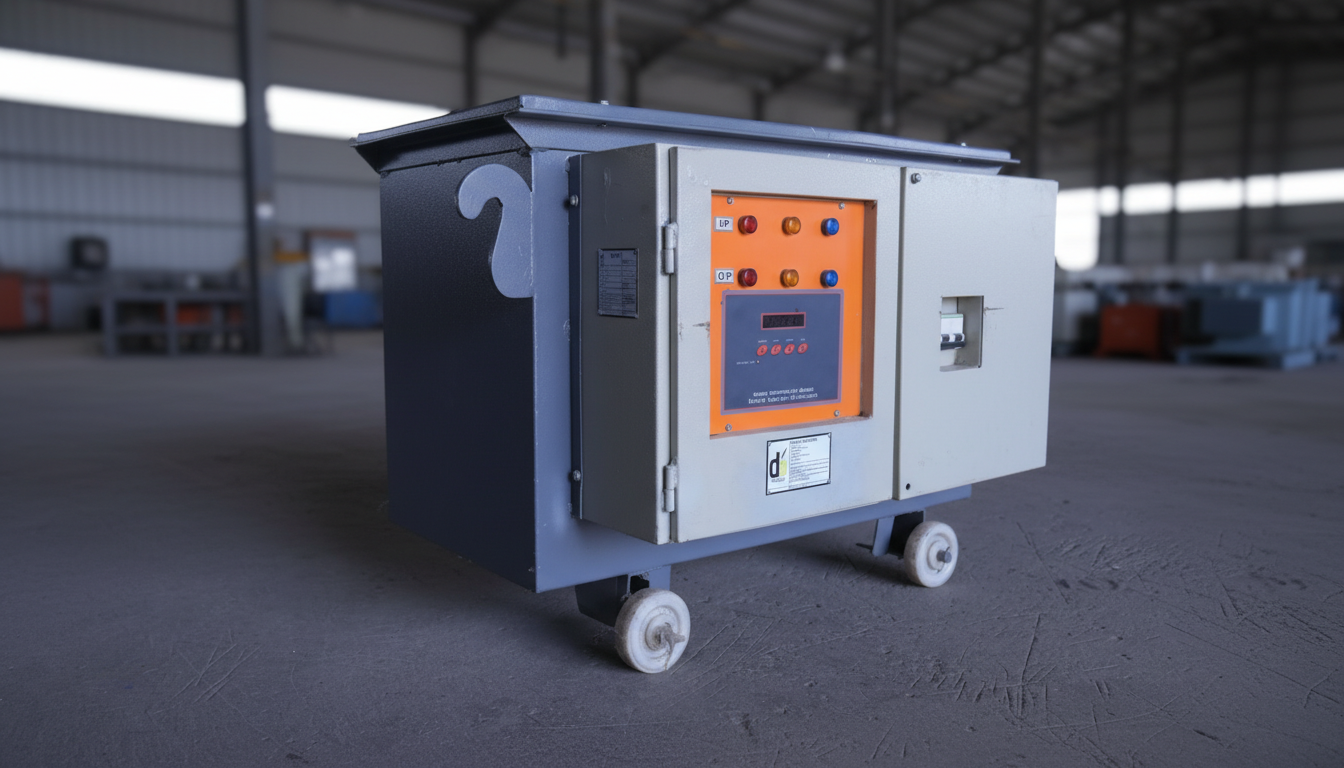

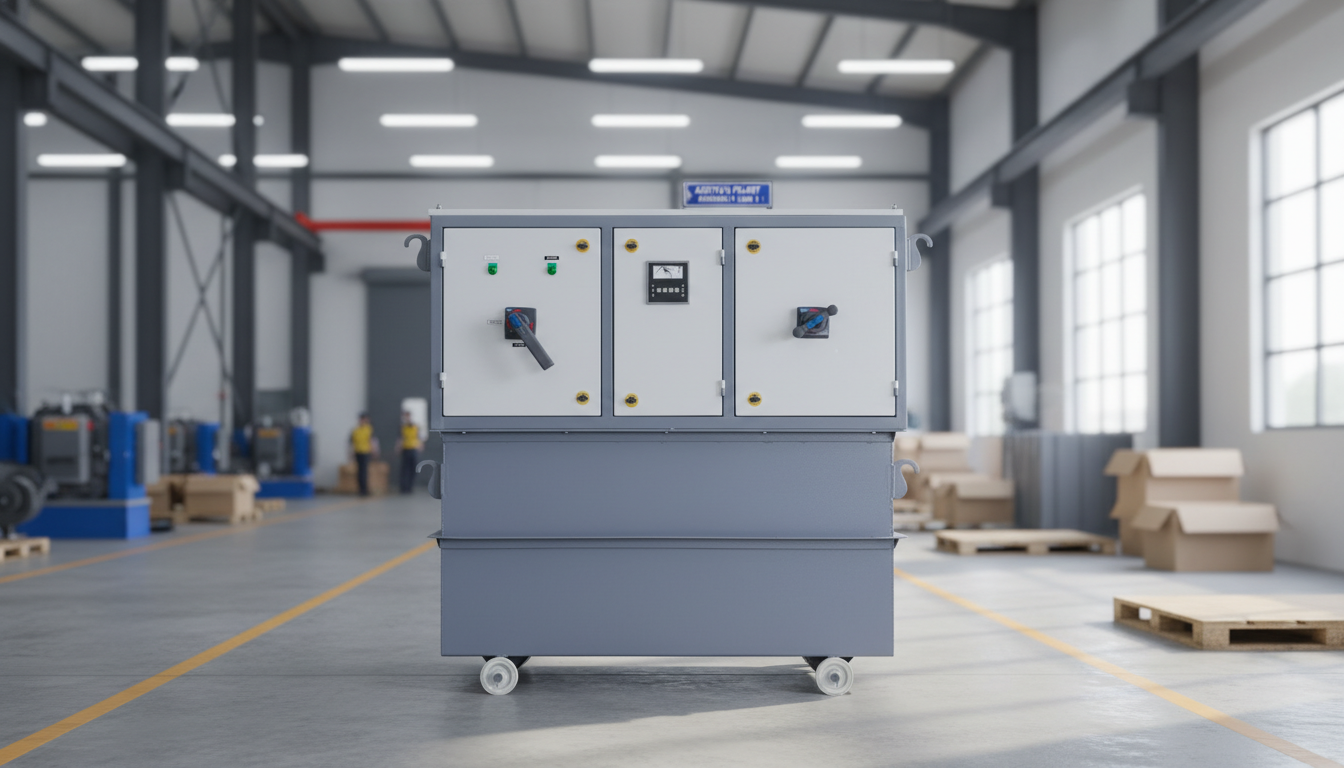

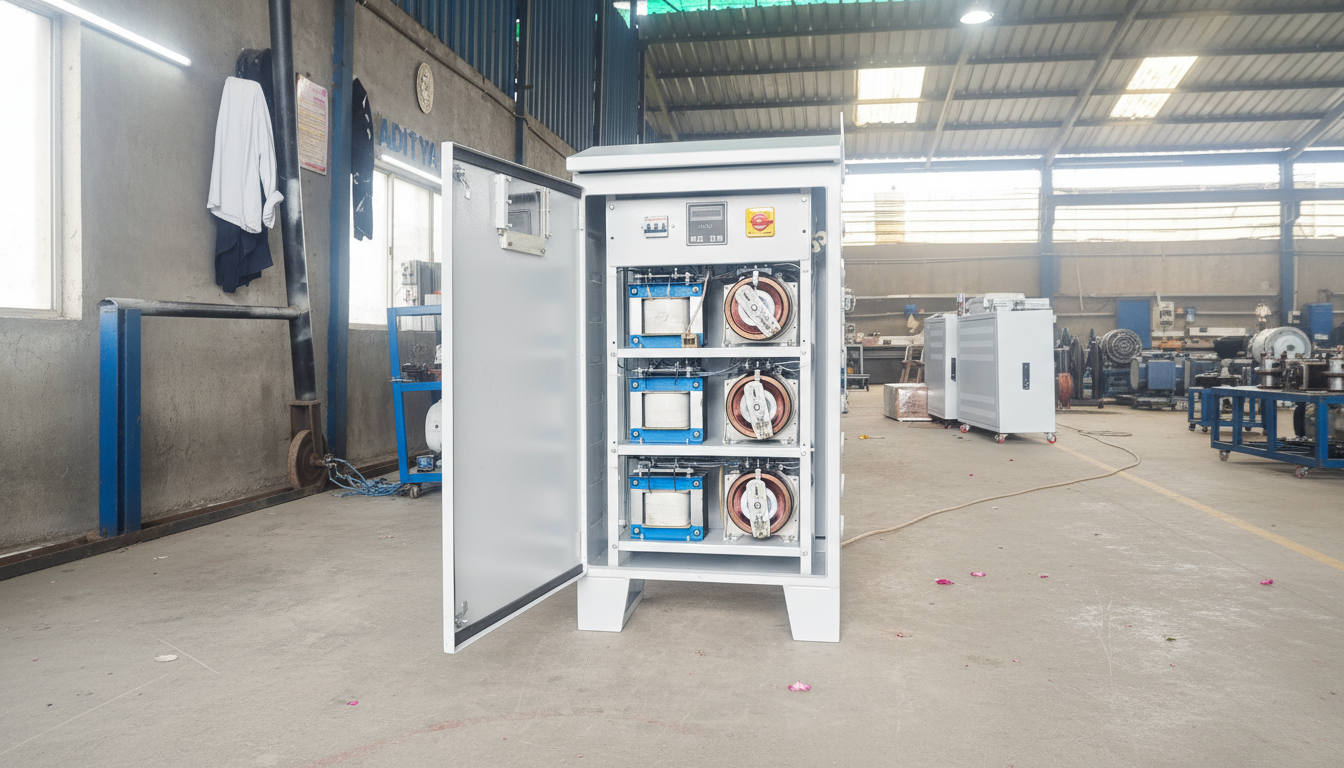

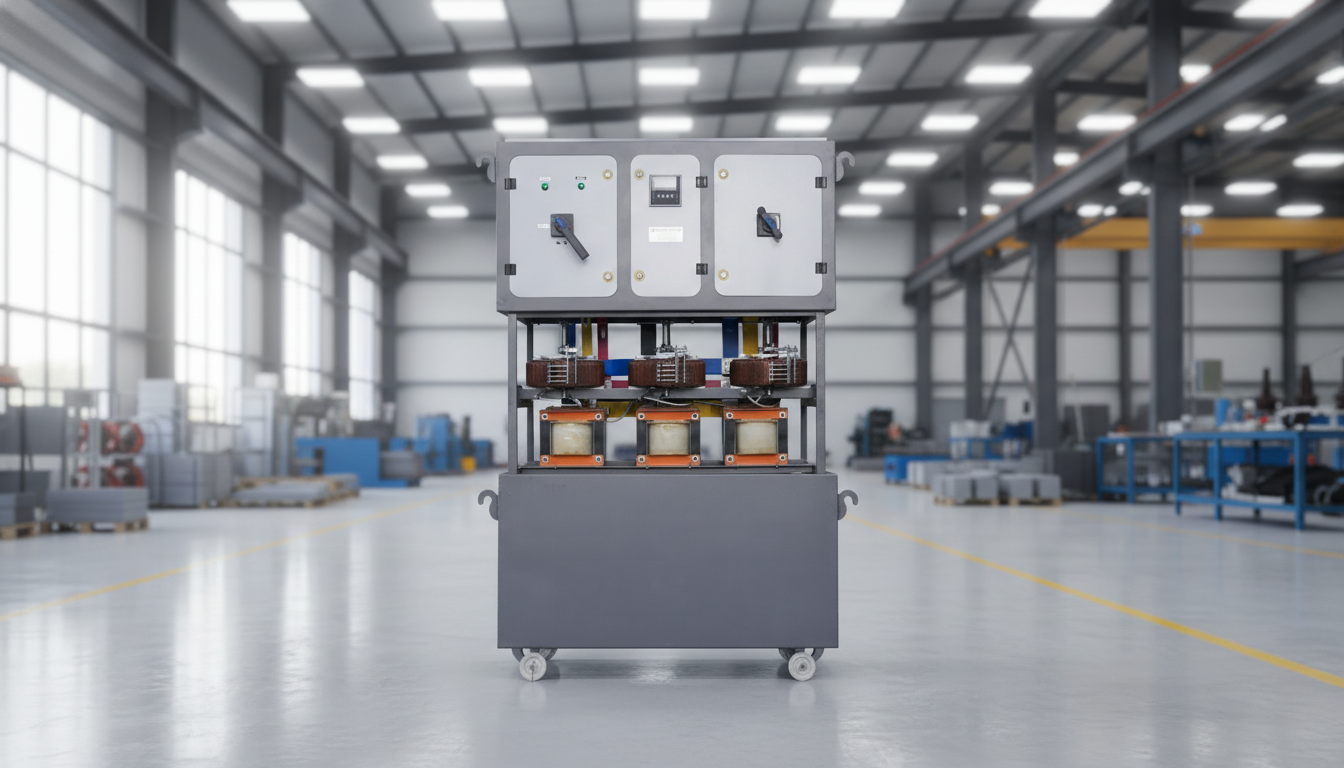

THREE PHASE STABILIZER |
|
| Input Voltage Range | 380-480V |
| Output Voltage | 415V |
| Output Voltage Accuracy | +1% |
| Control | Micro Processor |
| Frequency | 50 Hz |
| Response Time | 10 msec. |
| Efficiency | 98% |
| Rate Correction | up to 40-45V/sec. |
| Duty | 100% Continues |
| Wave Form Distortion | Nil |
| effect of Load power Factor | Nil |
| Cooling | Air/Oil Cooled |
| Ambient | 0-45°C Max/Relative
to humidity up to 90% |
| Type | Indoor |
| Rating KVA Air Cooled | 7.5 to 100 KVA |
| Rating KVA Oil Cooled | 30 to Any |
| Model | ADS1/ADP1/ADP2 |
|

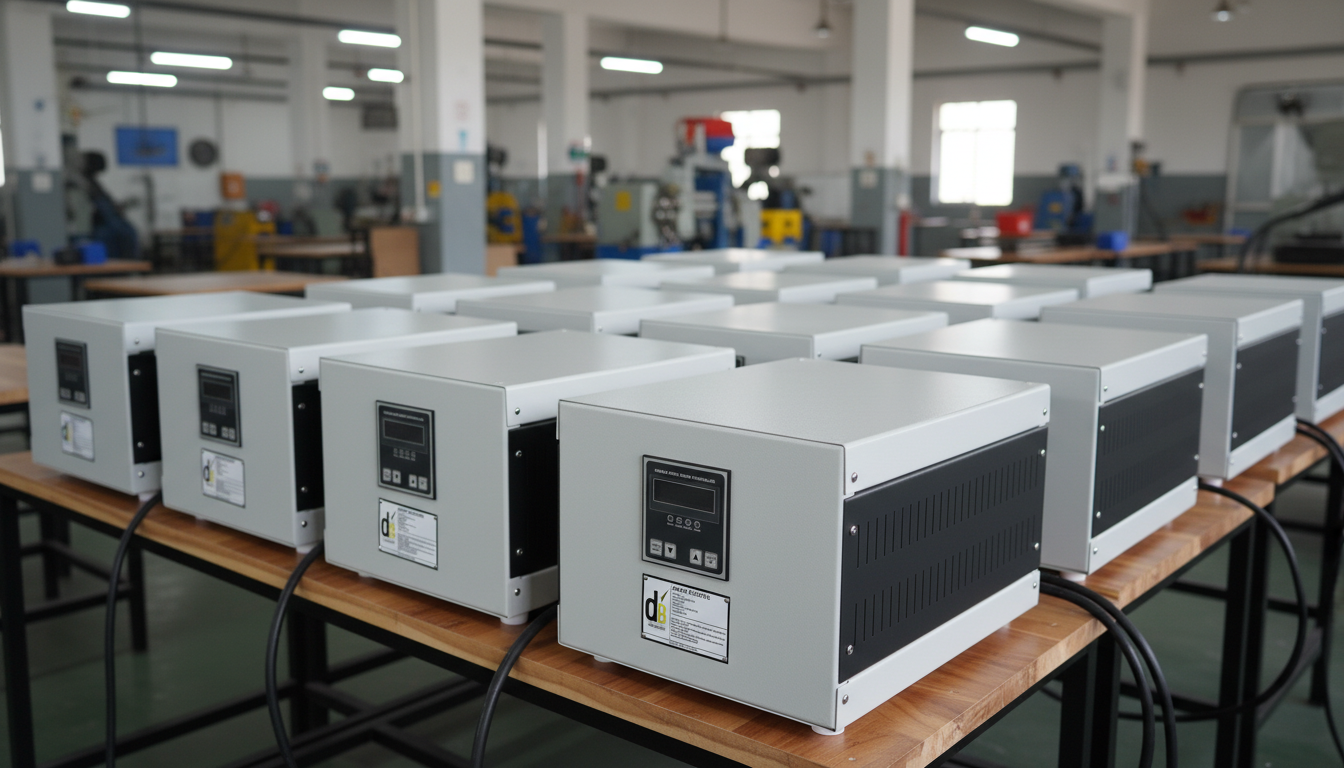

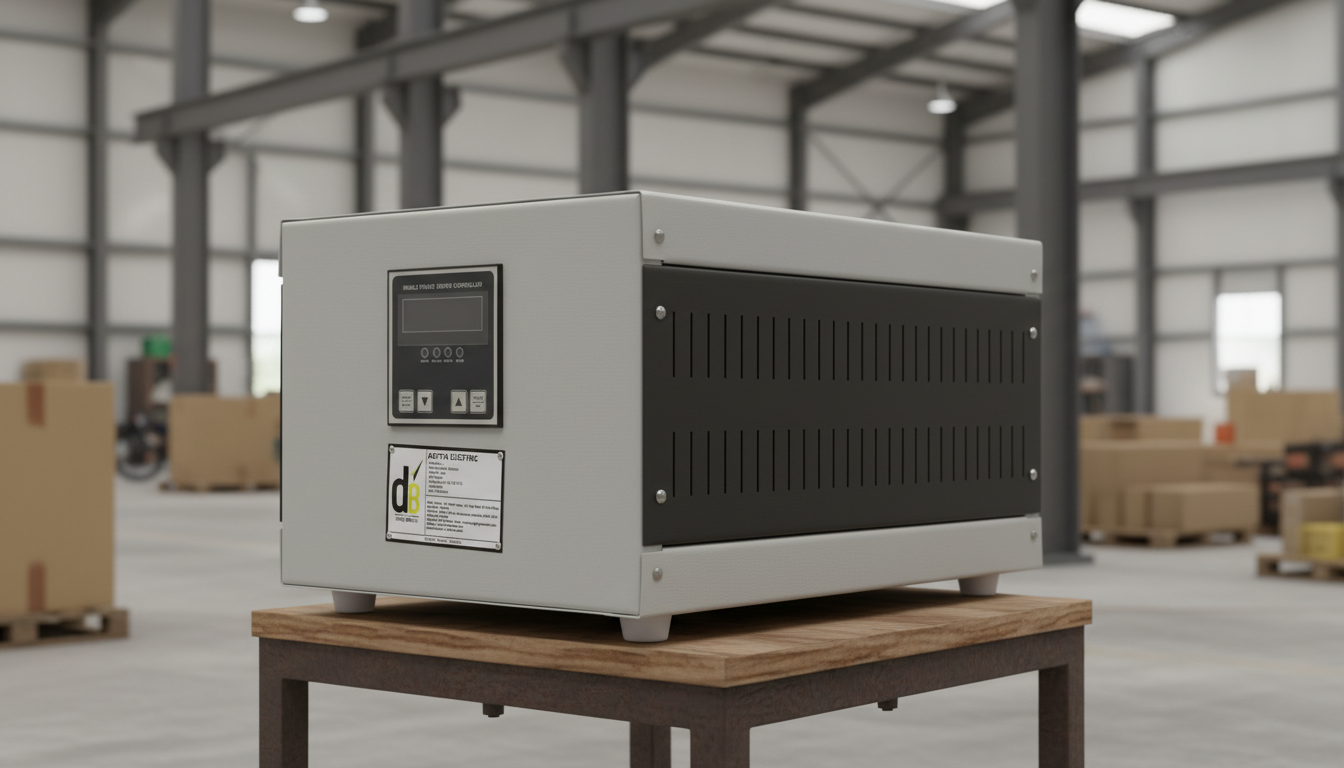

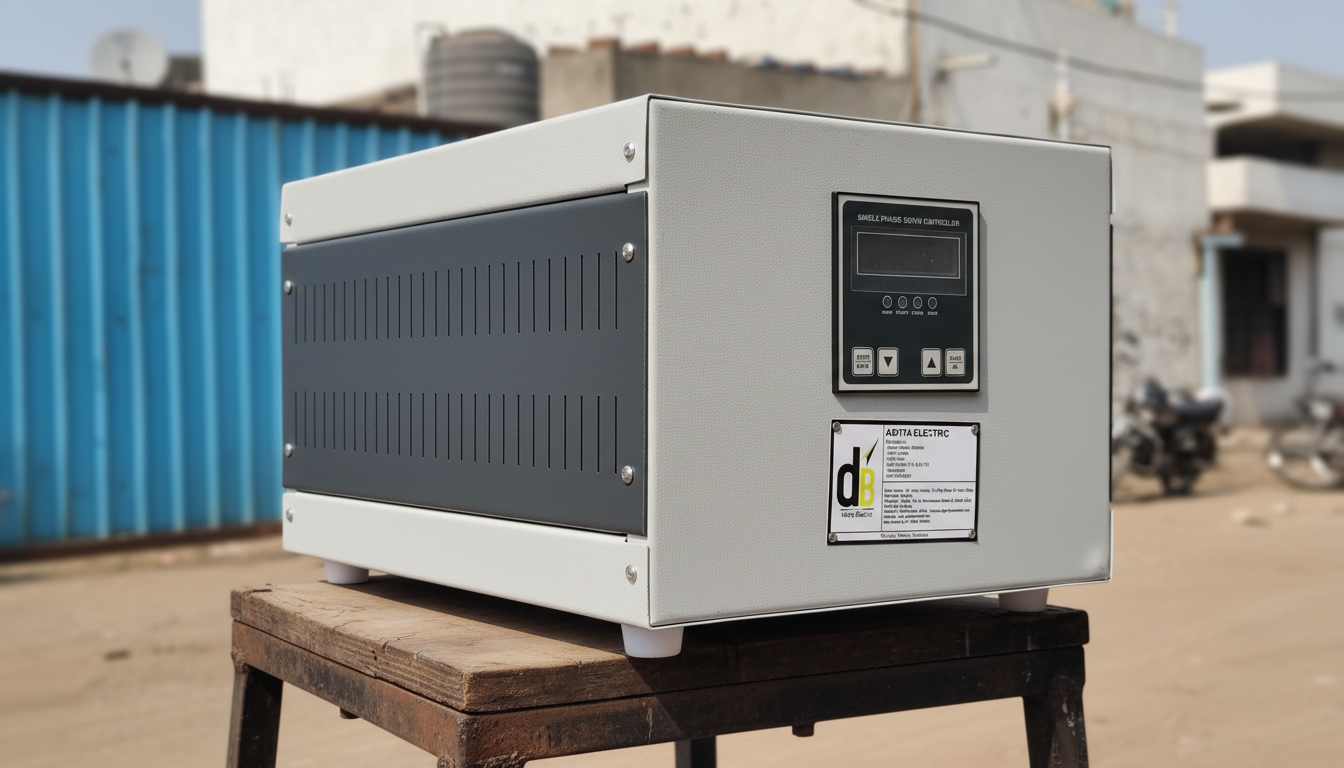

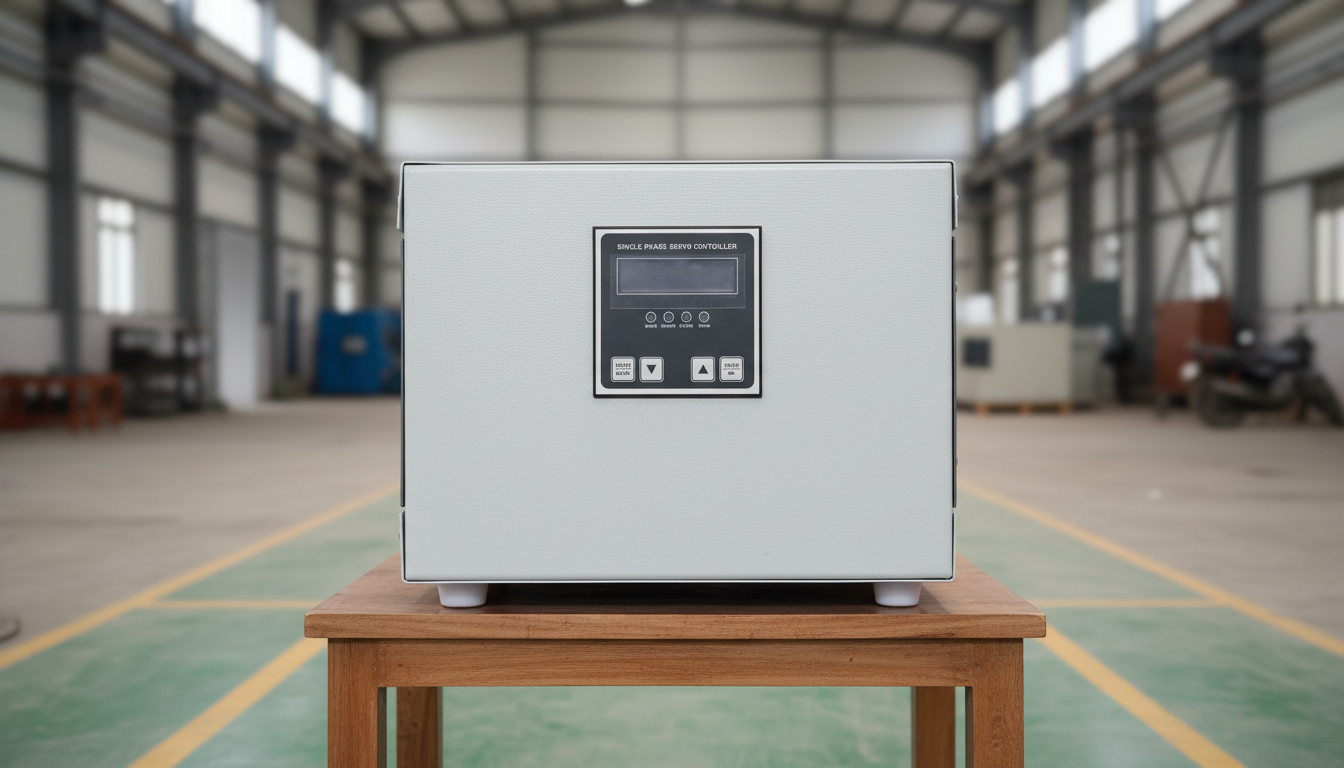

SINGLE PHASE STABILIZER |
|
| Input Voltage Range | 180-300V |
| Output Voltage | 230V |
| Output Voltage Accuracy | +1% |
| Control | Micro Processor |
| Frequency | 50 Hz |
| Response Time | 10 msec. |
| Efficiency | 98% |
| Rate Correction | up to 20-25V/sec. |
| Duty | 100% Continues |
| Wave Form Distortion | Nil |
| effect of Load power Factor | Nil |
| Cooling | Air Cooled |
| Ambient | 0-45°C Max/Relative
to humidity up to 90% |
| Type | Indoor |
| Rating KVA | 2 to 200 KVA |
| Model | ADS1/ADP1 |
SALIENT FEATURES
- LCD Display
- Operate on Push button switch
- Auto/Manual operation mode ■ Delay timer
- Input Line to Neutral Voltage Display
- Output Line to Neutral Voltage Display
- Output Line to Line Voltage Display ■Load Current Display
- Frequency Display
- Buzzer on Trip
- Earth Voltage Display Neutral Current Display As per model selected parameter may varies
APPLICATIONS
- Air Conditioning Plants
- Offset Printing Machine
- Escalators & Elevators
- Telecommunication System
- Defense Equipments
- Hotels
- Plastic Industries
- Pharmaceutical Industries
- R&D Institute
- Flour, Tube, Paper Mill
- Cold Storage
- Generated Set (DG Set)
- Medical Equipments
- CNC Machine
- Industrial & Lighting Load
- Sophisticated Lab Equipments
- Domestic Load
- Diamond Industries
- Food Industries
- Oil Industries
- Induction Heating
- Distilleries & Beverages
- Rubber Industries
PROTECTION
- Input High/Low Protection
- Output High/Low Protection
- Output High 3 Stage Protection
- Overload Protection (3 Stage)
- Single phasing Protection
- Neutral Missing Protection
- Phase Reversal Protection
- As per model selected parameter may varies
